5t gantry crane from professinal manufacturer

FOB Reference Price:Get Latest Price
US $4,000-18,000 / Set | 1 Set/Sets gantry crane (Min. Order)
Supply Ability:
9000 Set/Sets per Year gantry cranes
Port:
Tianjin Port/Qingdao Port/Shanghai Port
Report Suspicious Activity
Overview
Quick Details
Feature:
Gantry Crane
Condition:
New
Application:
Outdoor, indoor, workshop etc
Rated Loading Capacity:
5t
Rated Lifting Moment:
50KN
Max. Lifting Load:
5t
Max. Lifting Height:
6~30m or as your demands
Span:
12~35m
Place of Origin:
Henan, China (Mainland)
Brand Name:
Juqi
Model Number:
MH
Certification:
ISO9001
Warranty:
12 months
After-sales Service Provided:
Engineers available to service machinery overseas
Crane type:
5t gantry crane
Overload protection:
Included
Low voltage protection:
Included
Emergency braking:
Included
Limit switch:
Included
Environmental Management System:
GB/T 19001-2000 idt ISO 9001:2000 pass
Occupational health and safety System:
GB/T 28001-2001,OHSAS 18001:1999 pass
Quality management system:
GB/T 19001-2000 idt ISO 9001:2000 pass
Motors:
Chinese top brand Nanjing motors
Electrical main parts:
Siemens contactors or Schneider contactors
Packaging & Delivery
Packaging Details
Main beam, end carriage and ground beam packaged by plastic woven cloth or container, other electric parts packaged by strong plywood crate.
Delivery Time
40~50 days

5t gantry crane from professinal manufacturer

Product Description

Technical specification

Model number

MH - Single girder gantry crane

Capacity

3~32ton

Span

12m-35m

Cantilever

as your requirement

Lifting height

6m, 9m, 12m, 18m, 24m, 30m

Lifting speed

8(8/0.8)m/min, 7(7/0.7)m/min, 3.5(3.8/0.35)m/min

Traverse speed

20m/min, 30m/min or double speed

Traveling speed

20m/min, 30m/min or double speed

Lifting unit

CD or MD electric hoist

Industrial voltage

380V,50Hz,3Phase or as your demands

Control methods

Pendant push button or remote controller

Working temperature

-25°C ~ +42°C

Working class

A3, A4

Color of crane

Red, yellow or as your demands

Electrical system

Siemens brand contactor

Motor

China top brand motors from Nanjing

Raw material of crane structure

Q235 steel plate

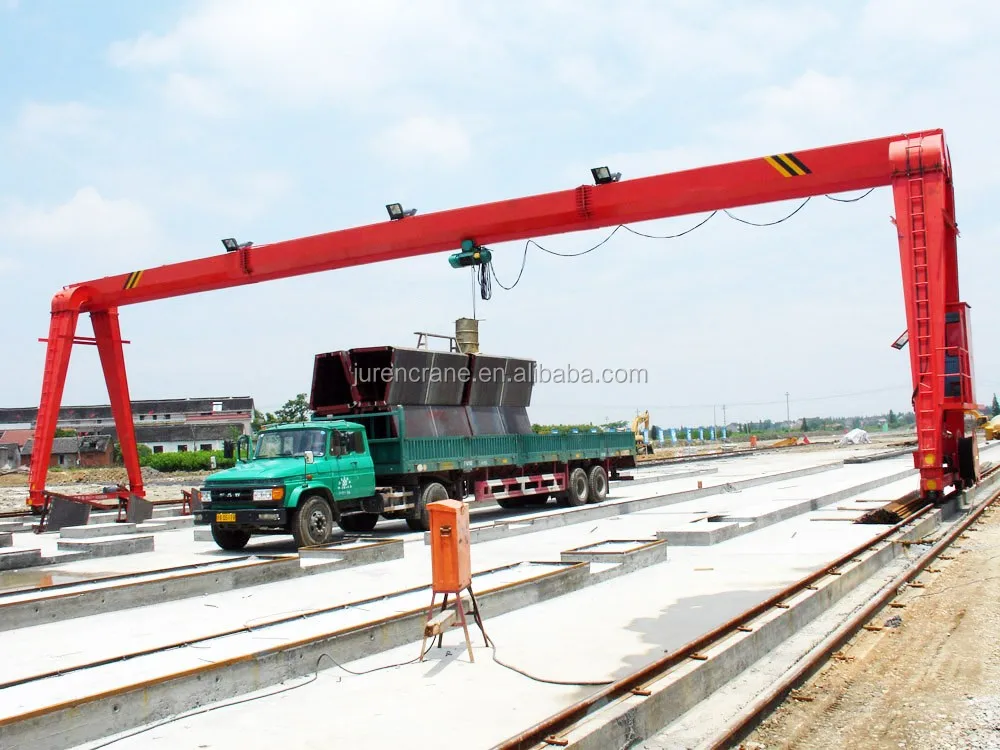

Photos View

Photos View

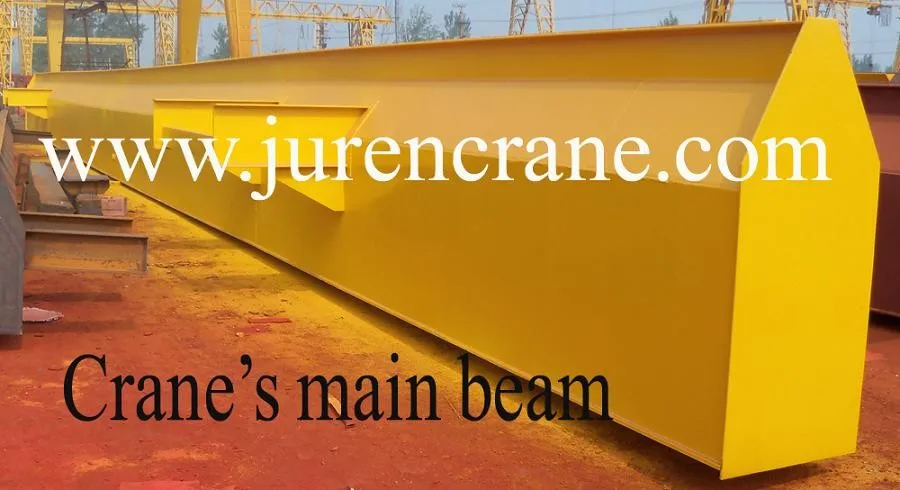

The frame of crane beam:

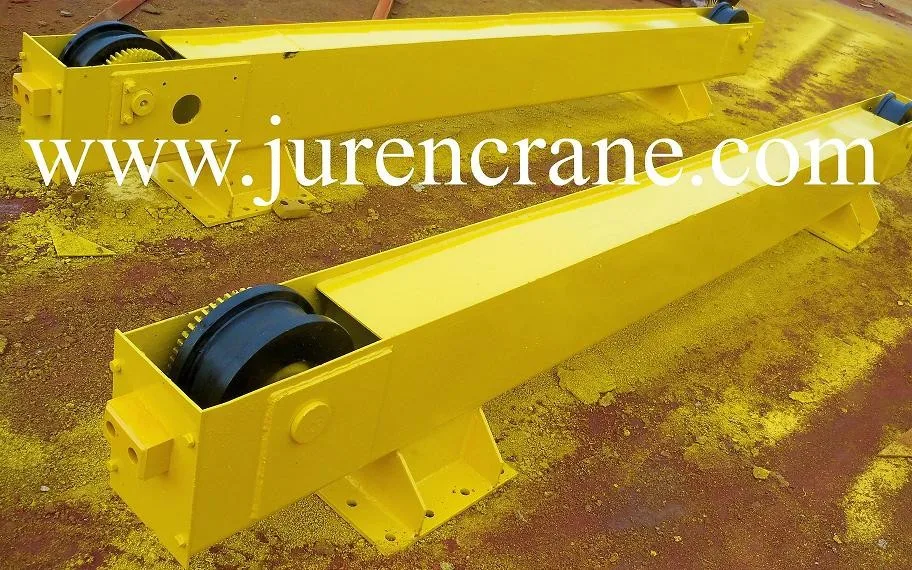

The frame of travelling beam(End truck):

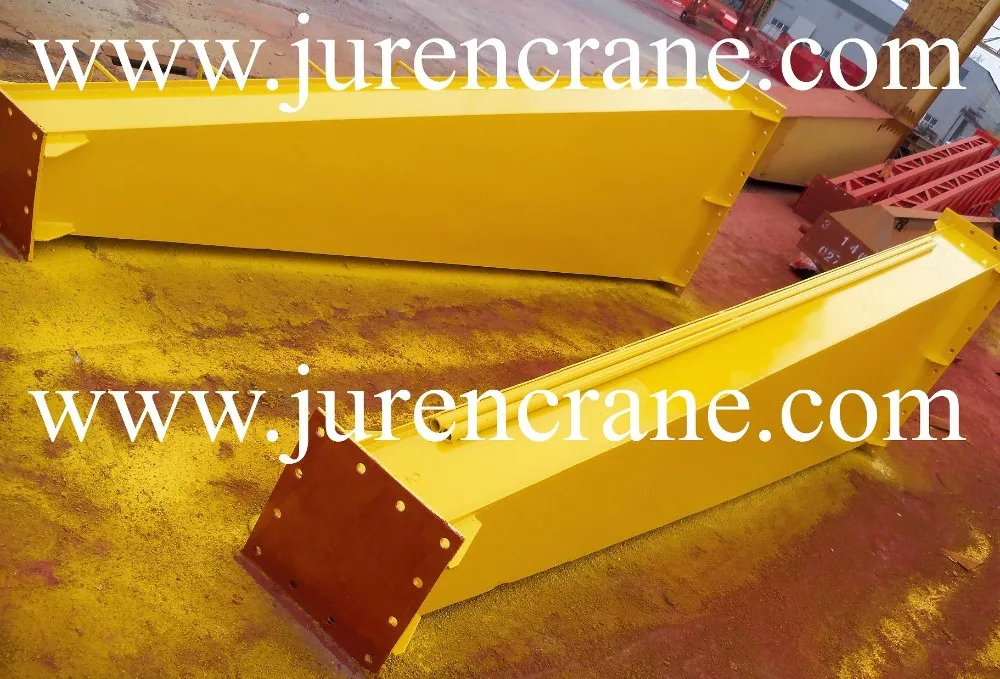

 The frame of legs:

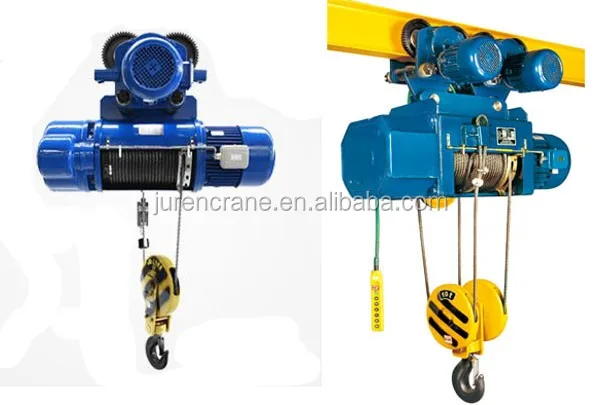

The frame of lifting mechanism(wire rope electric hoist):





Packaging & Shipping





Our Services

1. Freely provide project designing, process designing, choosing suitable equipment for you.

2. Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export

3. 12months warranty

4. One year free parts

5. Professional technicians provide installation, commissioning services

6. Technical advisory for any time



Company Information
Henan Juren Crane Group Company predecessor is Henan Juren Crane Company, and was established in 1987. Our company has several subsidiary companies, such as Henan Juren Crane Services Co., Ltd., Henan Juren Advertisement Co., Ltd. and Hexin Machinery & Electronic Co., Ltd.  The registered fund of group company is RMB120,000,000, and  the fixed assets are RMB200,000,000.  We have south district factory, north district factory and new district factory.  The company occupies 460,000 square meters, and the total employees are more than 1200 persons.

Our company has enough experience and technical to manufacture high quality hoists and cranes. Our purpose is "Customer First, Attentively Service". Welcome to visit our factory and choose our products.

Factory Views

ISO Certification

FAQ

Welcome to contact us by email or online and visit our factory, please confirm below information before you send inquiry, we will offer you the best crane design and best service.

1. Capacity of gantry crane

2. Span ( the distance of rail center to rail center)

3. Do you need cantilever? if you need,Pls tell me the length.

4. Lifting height (the distance of ground to hook center)

5. Industrail voltage

6. Do you need we supply rails? length of rails?
