electric bridge crane

FOB Reference Price:Get Latest Price
US $1,500-8,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
20000 Set/Sets per Year overhead travelling crane
Port:
Tianjin port
Report Suspicious Activity
Overview
Quick Details
Feature:
Bridge Crane
Condition:
New
Application:
Warehouse/Workshop/Material stocks
Rated Loading Capacity:
1ton~20ton
Rated Lifting Moment:
10KN~200KN
Max. Lifting Load:
1ton~20ton
Max. Lifting Height:
6m~30m
Span:
7.5m~28.5m
Place of Origin:
Henan, China (Mainland)
Brand Name:
Juqi
Model Number:
LD
Certification:
ISO9001
Warranty:
14 months
After-sales Service Provided:
Engineers available to service machinery overseas
Good name electrical parts:
Schneider or Chint brand contactors
Up/down limit switch:
Includes
Overload protecter:
Includes
Emergency stop button:
Includes
Good name motors:
Nanjing motors
Crane frame:
One crane beam only
Lifting mechanism:
Wire rope electric hoist
Power source:
380V, 50Hz, 3phase or others
Paint color:
Red or yellow or others
Control model:
Pendant pushbuttons/remote/cabin control
Packaging & Delivery
Packaging Details
Electrical parts & other small accessory are packaged by plywood cases, the crane beam & end carriages are packaged by plastic materials.
Delivery Time
Shipped in 30 days after payment

Outdoor and Indoor Single Girder Bridge Crane

 Product Description

1-Brief introduction of single girder overhead crane

1. This overhead crane is characterized by more reasonable structure and higher strength steel as a whole, the main beam and end carriages are made by U-section steel frame.

2. This overhead crane is used together with CD1/MD1 model or HC/HM model wire rope electric hoist as a complete set.

3. This overhead crane is medium duty class overhead crane, the capacity from 1ton to 20 tons. The span from 7.5m to31.5m, the working grade is A3. Working temperature within -25 to +40 centigrade.

4. This overhead crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive and corrosives environment.

2-Pictures show

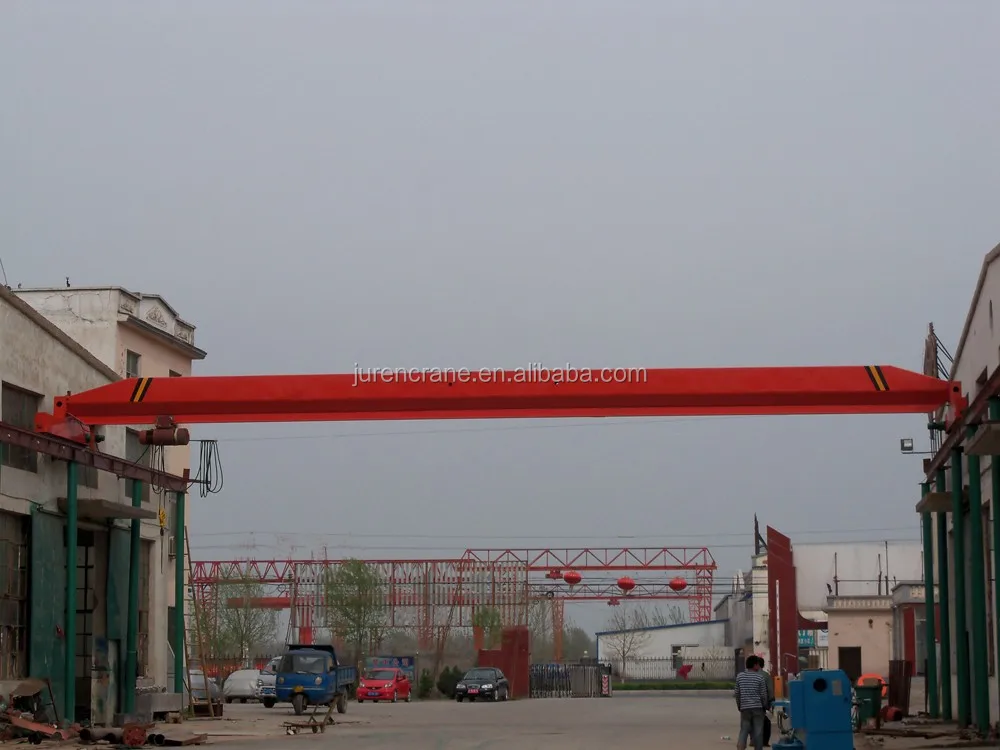

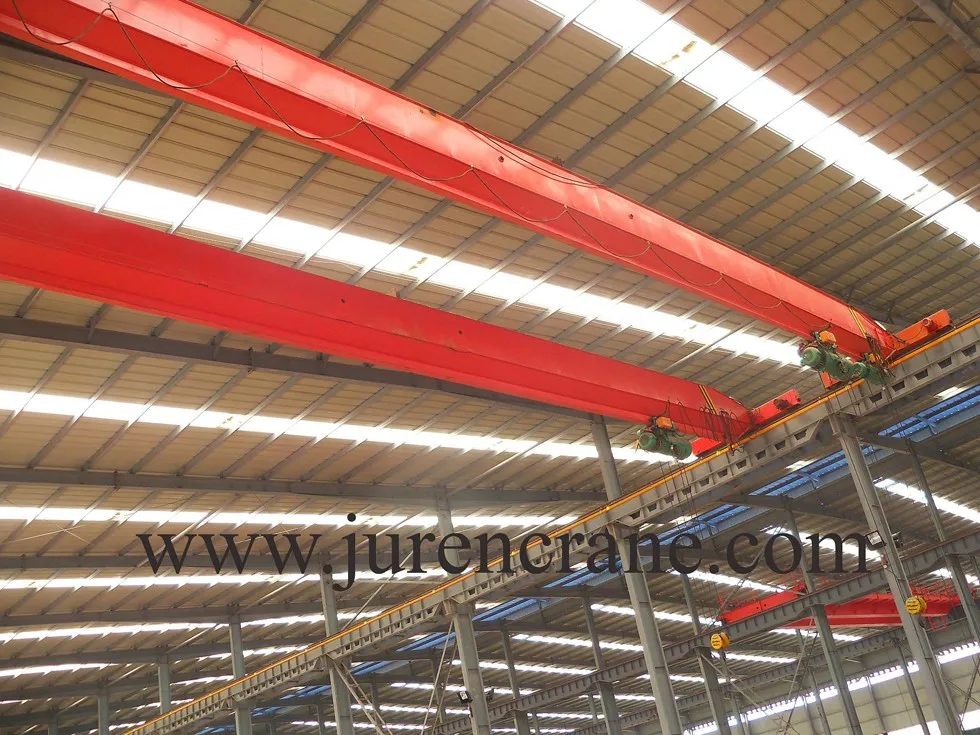

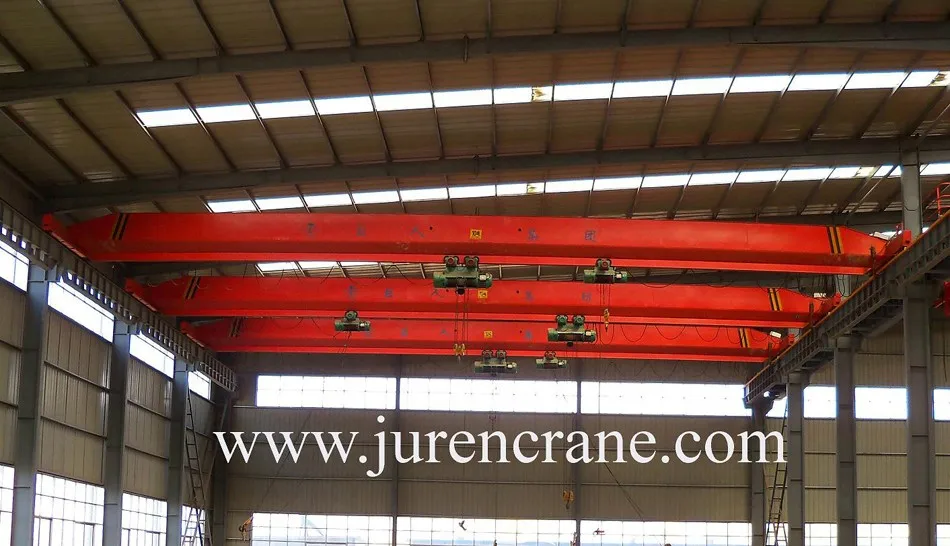

The complete picture

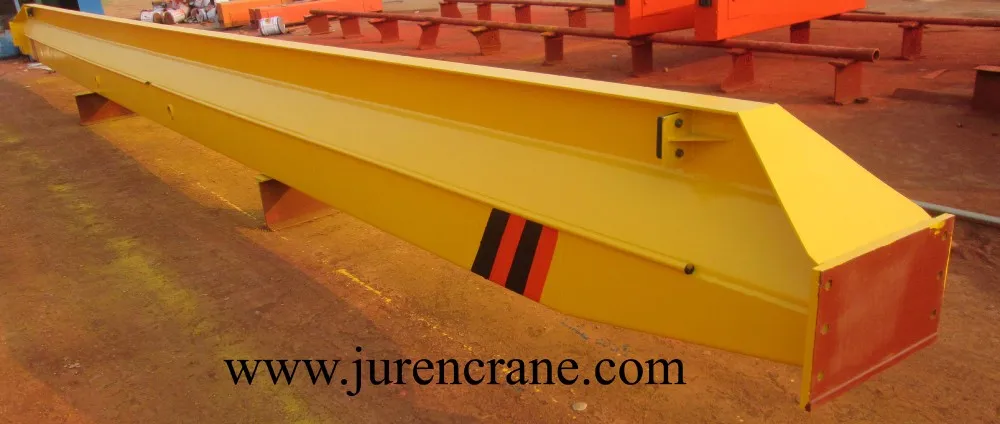

The picture of main girder:

- Rigid welded box Girder or sturdy hollow steel section

- Modula design

- Made of steel Q235 or Q345

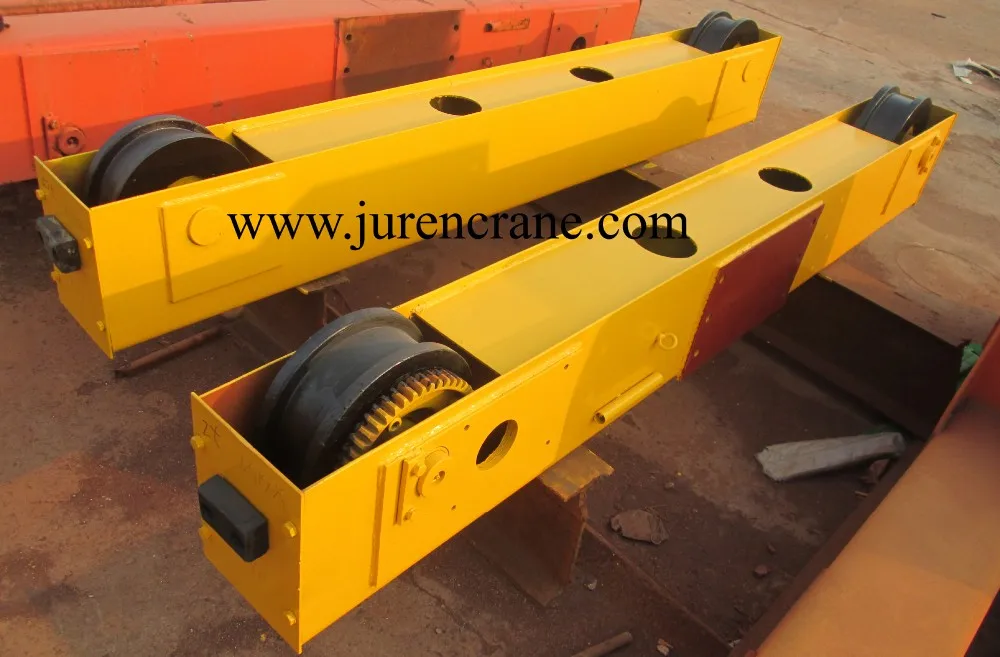

The picture of end carriages (travelling mechanism) :

- Rigid welded box type end carriage

- Modula design

- Cone squirrel cage motor or soft start motor as option

- Travelling speed: Single or Dual or Step less as per required

- Combine with Main Beam, Wheel, Motor, Reducer, Brake and Other Parts

- Steel plate adopts shot blasting and high quality painting

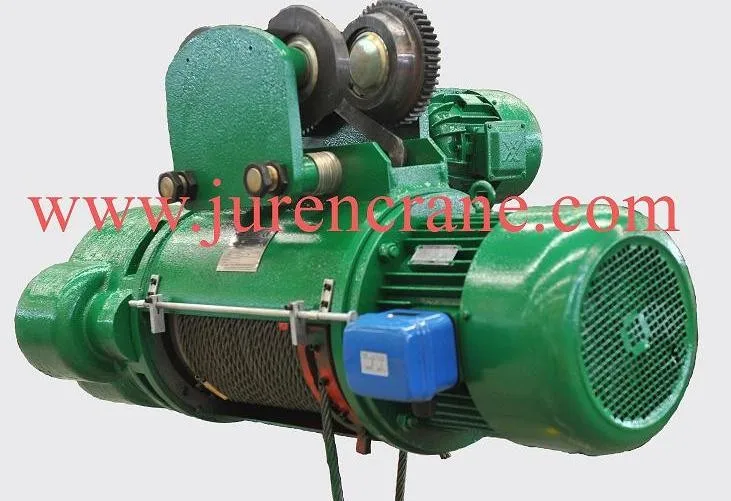

The picture of wire rope electric hoist:



- Monorail wire rope electric hoist

- Lifting speed: single or dual as per required( CD type has single speed while MD type has double speed to satisfy accurate operating.)

- High performance with most economical price

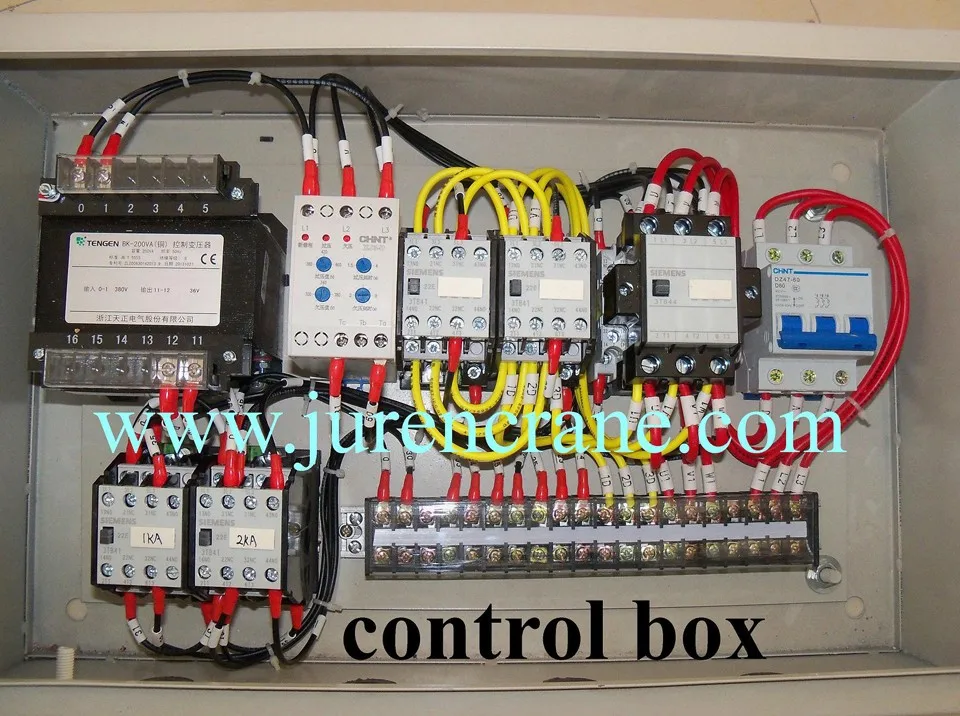

 Electrical box:

3-Control ways

- Independent pendent control travel along C-track

- Wireless control as option

- Cabin control as option

4-Safe protection

- Emergency-off switch

- Overload protect

- Earth protection

- Cross travel and long travel protection

- Lifting travel protection

- Overheating protection of motor

Packaging & Shipping

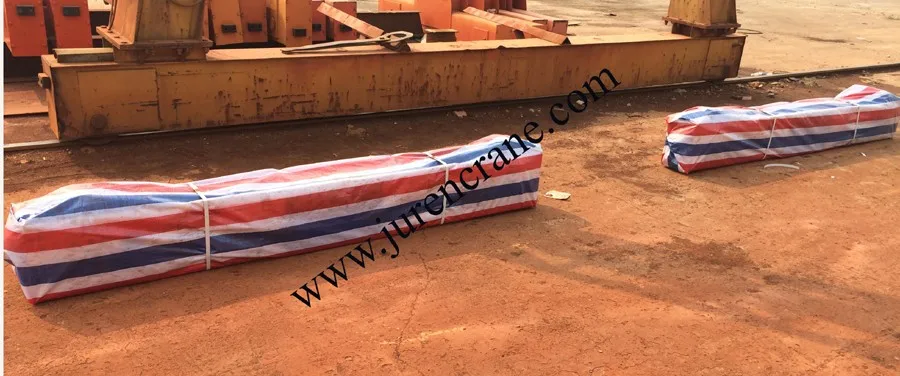

 Packing and shipping of single girder overhead crane

Our Services

1,Providing one-year free quick-wear part.

2,Low charge for continue maintenance when warranty is expired.

3,Exclusive engineer support at any time.

4,One year warranty for whole machines.

5,We can provide training to end-users.

Company Information

1. Henan Juren Crane Group Co., Ltd predecessor is Henan Juren Crane Co., Ltd, and was established in 1987.

2. Our company has several subsidiary companies, such as Henan Juren Crane Services Co., Ltd., Henan Juren Advertisement Co., Ltd. and Hexin Machinery & Electronic Co., Ltd.

3. The registered fund of group company is RMB120,000,000, and the fixed assets are RMB200,000,000. We have south district factory, north district factory and new district factory.

4. The company occupies 460,000 square meters, and the total employees are more than 1200 persons.

5. Our company has enough experience and technology to manufacture high quality hoists and cranes.

6. Our purpose is "Customer First, Attentively Service". Welcome to visit our factory and choose our products.

Factory views Juren Crane

ISO Certification Juren Crane





 FAQ

Welcome to send us email or leave me message to tell me details of overhead crane demand so that I can send you offer in the shortest time:

  1. Lifting Capacity?
  2. Span?
  3. Lifting height?
  4. Industry voltage in your country?
  5. Do you need rails?
  6. Working hours per day?
  7. What materials to be lifted?
  8. Working temperature?
