Electric Column Mounted Jib Crane With Schneider Contactors

FOB Reference Price:Get Latest Price
US $3,000-8,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Feature:
Bridge Crane
Condition:
New
Application:
Warehouses Factories Workshops and so on
Rated Loading Capacity:
5ton
Rated Lifting Moment:
2.5KN-50KN
Max. Lifting Load:
5ton
Max. Lifting Height:
6m
Span:
2m-6m
Place of Origin:
Henan, China (Mainland)
Brand Name:
Juqi
Model Number:
BZD
Certification:
ISO9001
Warranty:
One year
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
yellow and Red or as your request
Product Name:
Electric Column Mounted Jib Crane
Power Source:
220v / 380v / 400v / 415v / 440v / 460v / 480v
Voltage lower protection function:
Include
Main electrical parts:
Siemens brand
Painting color:
Yellow/red or according to client's demand
Control method:
Remote control or push buttons control
working system:
A3
Limit Switch:
Included
Type:
BZD
SupplyAbility
SupplyAbility:
5000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Electrical parts and other small accessory are packaged by strong plywood crate, the crane arm and pillar are packaged by polyethylene fabric.
Port
Tianjin Port
Lead Time :
Shipped in 30 days after payment
Product Description

Electric Column Mounted Jib Crane From Juren Crane With Schneider Contactors

1-Technical specification

                          Technical specification
Model numberjib crane
Rated Loading Capacity0.25t/0.5t/1t/2t/3t/5t
Span2m-6m
Max Lifting height6m
Turning angle180°,270°,360° or any
Hoisting low speed0.8m/min
Hoisting normal speed8m/min
Power Supply3 phase A.C. 380V, 50HZ (As your demands)
Control methods push button control or remote control
Working temperature-20°C~+42°C
Working classA3
Color of cranered, yellow or as your demands
2-Pictures show
The overall sketch of  column mounted jib crane

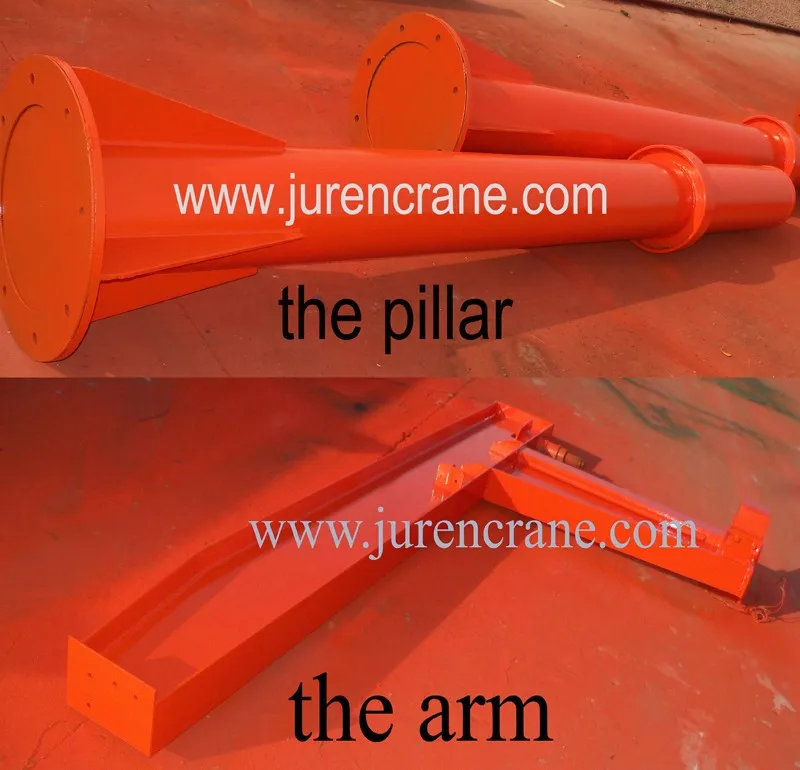

 The picture of pillar and the revolving arm
- The pillar is fixed on the concrete base and made of tapered self-aligning bearings that in double rows which will bear the radial force and axial force.
- The arm is welded with I – beam (or box girder) and supporting arm. Horizontally rotation of the revolving arm is manual/electric.
The picture of electric hoist
- The hoist travels with the right and left straight line on the H beam, using the hoist to lift the heavy materials. The electric hoist moves along the arm and lifts the goods by up and down.
Control ways
- Pushbuttons control or remote control as option
Packaging & Shipping

 Electrical parts and other small accessory are packaged by strong plywood crate, the crane arm and pillar are packaged by polyethylene fabric.

Our Services

1,Providing free quick-wear part.

2,Low charge for continue maintenance when warranty is expired.

3,Exclusive engineer support at any time.

4,One year warranty for whole machines.

5,We can provide training to end-users.

Company Information

Henan Juren Crane Group Co., Ltd predecessor is Henan Juren Crane Co., Ltd, and was established in 1987. Our company has several subsidiary companies, such as Henan Juren Crane Services Co., Ltd., Henan Juren Advertisement Co., Ltd. and Hexin Machinery & Electronic Co., Ltd. The registered fund of group company is RMB120,000,000, and the fixed assets are RMB200,000,000. We have south district factory, north district factory and new district factory. The company occupies 460,000 square meters, and the total employees are more than 1200 persons.

Our company has enough experience and technical to manufacture high quality hoists and cranes. Our purpose is "Customer First, Attentively Service". Welcome to visit our factory and choose our products.

Factory shows

 ISO Certification

FAQ

1.Is your products customized?

Yes. We can provide the customized Overhead crane depending on your detail requirement.

2. Do you provide other lift tools?

 Yes, we can provide some lift tools like grab, hoist and electric magnetic chuck as you want.

3. The space of my workshop is limited, can the crane ok for mine?

Yes, please let us know your requirement and we engineer can design for you.

4. What’s the information should I provide when inquiry?

As follows:

     1)Lifting capacity.

     2)Lifting height.(hook center to ground)

     3)Span.with cantilever or not?

     4) Power source.

     5)Working condition: which material to lift? temprature?
