Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: JUQI
  • Model Number: CD/MD
  • Usage: use for crane
  • Power Source: Electric, 3 phase AC 380V 50HZ or other voltage
  • Sling Type: Wire Rope
  • Maximum Lifting Weight: 0.25t-20t
  • Maximum Lifting Height: 6m-30m
  • Lift Speed: 0.8/8m/min, 0.7/7m/min, 0.35/3.5m/min
  • Certification: ISO9001
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: As your requirements
  • Product name: Wire rope electric hoist
  • Capacity: 0.25t-20t
  • Application: electric hoist is used in factories, mines, harbors, ware houses
  • Hook: single hook
  • Packing: Wooden case
  • Hoist type: CD/MD
  • Motor: Nanjing or Nanjing special motor

Packaging & Delivery

Packaging Details Electric wire rope hoist is packaged by high quality wooden cases.
Delivery Time Shipped in 15 days after payment
 Product Description
The technical parameter
Technical specification
Model numberCD/MD - Electric hoist
Capacity0.25-20ton
Lifting height6m, 9m, 12m, 18m, 24m, 30m
Lifting speed8(8/0.8)m/min, 7(7/0.7)m/min, 3.5(3.5/0.35)m/min
Traverse speed20m/min, 30m/min or double speed
Industrial voltage380V,50Hz,3Phase or as your demands
Control methodsPendant push button or remote controller
Working classM3
Color of electric hoist as your demands
Electrical systemSiemens brand contactor
Motor China top brand motor from Nanjing

The internal structure sketch of electric hoist

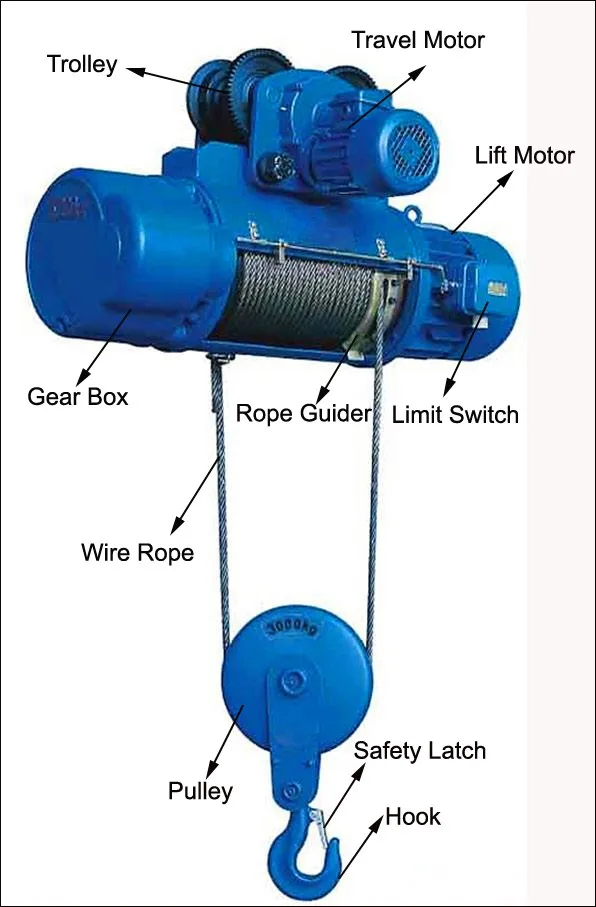

The outer structure sketch of electric hoist

Component parts of electric hoist







  Hoist parts

PictureBrief introduction

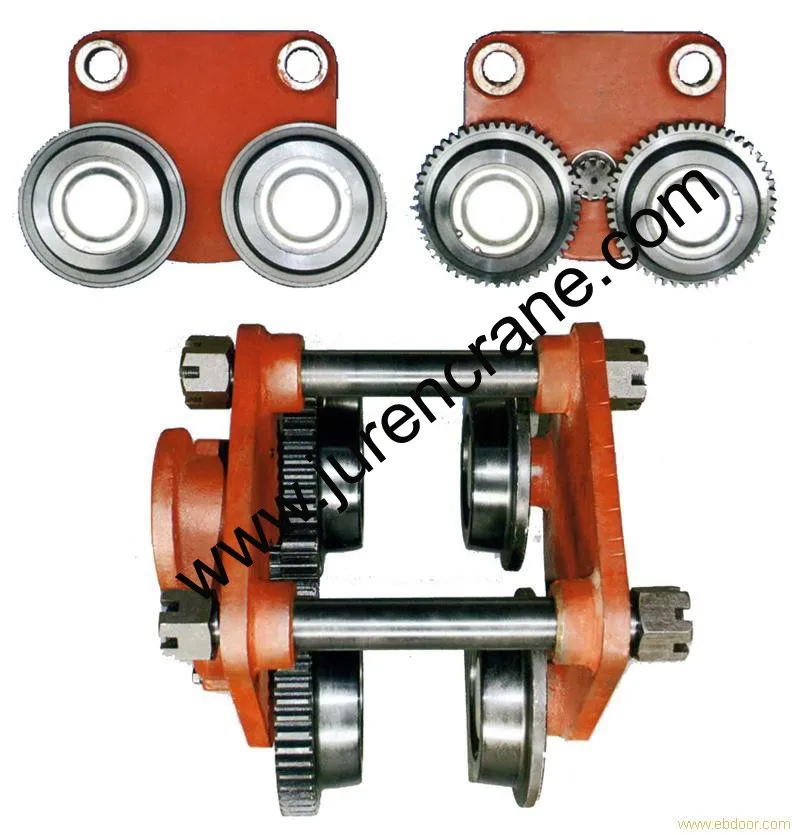

Trolley

Trolley could be installed on single girder crane, jib crane and other lift equipments.

Motor

Motor is a taper type rotor motor with brake.

It is used for hoist trolley travel and hoist lifting.

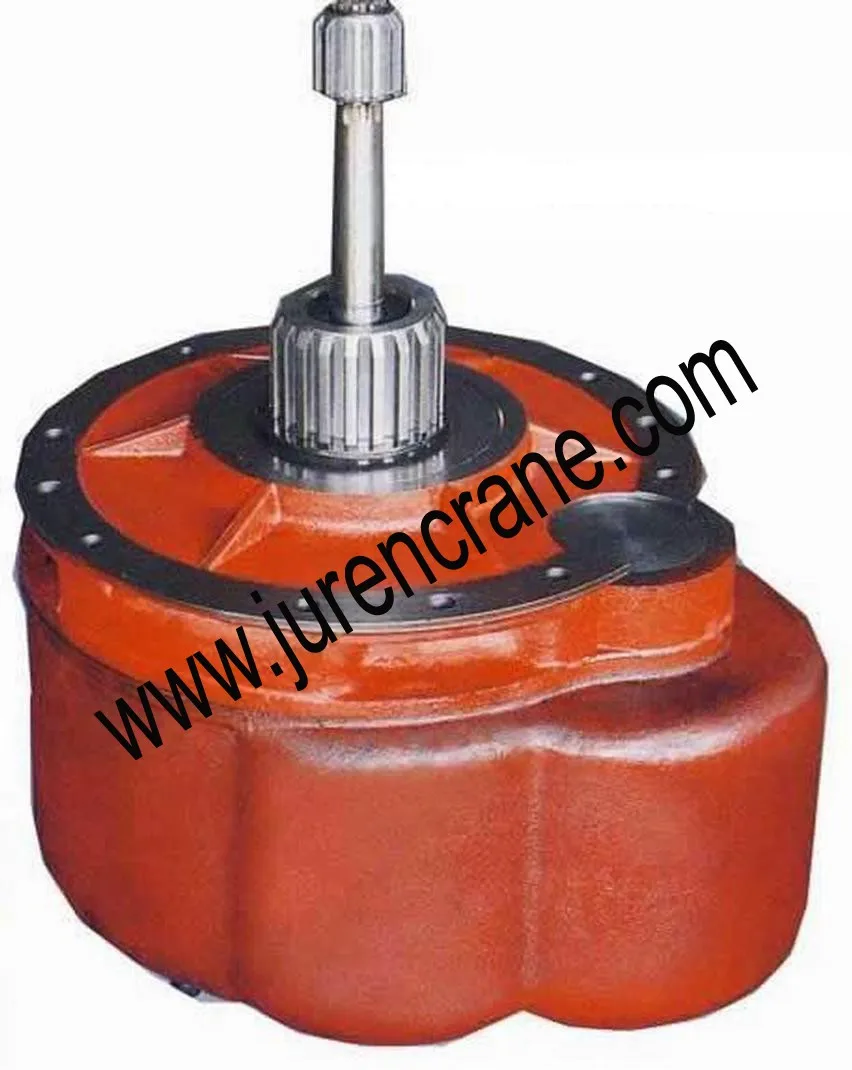

Gear boxGear box has been specially treated for high wear resistance, round shape gear box for under 16ton capacity, square shape gear box for more than 16ton capacity.
Rope guider Rope guider can arrange the wire rope to reeve on the drum orderly and stop the wire rope from winding disorderly.
Limit switchIt can keep hoist lift within suitable height. When the goods are lifted to max height, the power will be shut off automatically.

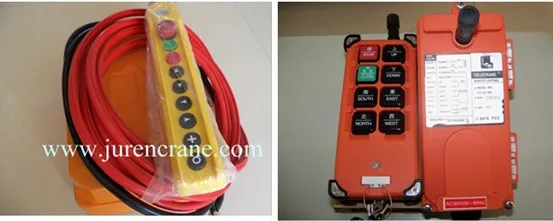

Control methodsPendant push button or wireless remote controller

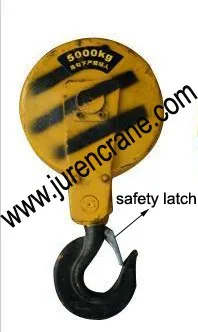

HookThe hook can rotate 360 degree and has safety latch.
.
Packaging & Shipping

Electric wire rope hoist is packaged by high quality wooden cases.

Our Services

1. Freely provide project designing, process designing, choosing suitable equipment for you.

2. Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export.

3. 12months warranty.

4. One year freeparts.

5. Professional technicians provide installation, commissioning services.

6. Technical advisory for any time.
