Quick Details

  • Feature: Gantry Crane
  • Condition: New
  • Application: Factory, open yard
  • Rated Loading Capacity: 16ton
  • Rated Lifting Moment: 160 KN
  • Max. Lifting Load: 16ton
  • Max. Lifting Height: 6m, 9m
  • Span: 12-30m
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Juqi
  • Model Number: MH
  • Certification: ISO9001
  • Warranty: 14 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Good name electrical parts: Schneider brand contactors
  • Up/down limit switch: Includes
  • Overload limiter: Includes
  • Emergency stop button: Includes
  • Good name motors: Nanjing motors
  • Crane frame: One crane beam only
  • Lifting mechanism: Wire rope electric hoist
  • Power source: 380V, 50Hz, 3phase or others
  • Control model: Pendant pushbuttons or remote control
  • Paint color: Red or yellow or others

Packaging & Delivery

Packaging Details Electrical parts & other small accessory are packaged by plywood cases, the crane beam & end carriages are packaged by plastic materials.
Delivery Time Shipped in 35 days after payment

3-32t single girder truss frame gantry crane with electric hoist

Product Description



1.  MH model single girder truss frame gantry crane is used together with CD1/MD1 model wire rope electric hoist. It is a track travelling small and MID-duty class gantry crane.

2. The capacity of this gantry crane is  3ton to 16ton, the span from 12m to 30m, the working temperature within -20-- +40 centigrade.

3. The surface of facing wind is very small, because of its steel-pipe leg. It is the best light crane, which is used both in multi-wind area and workshop for inside and outside.

4. The control model are pendant pushbutton control, remote control for choice.

5. The duty class of this gantry crane is A4..

The main girder of truss frame gantry crane

The support legs of truss frame gantry crane

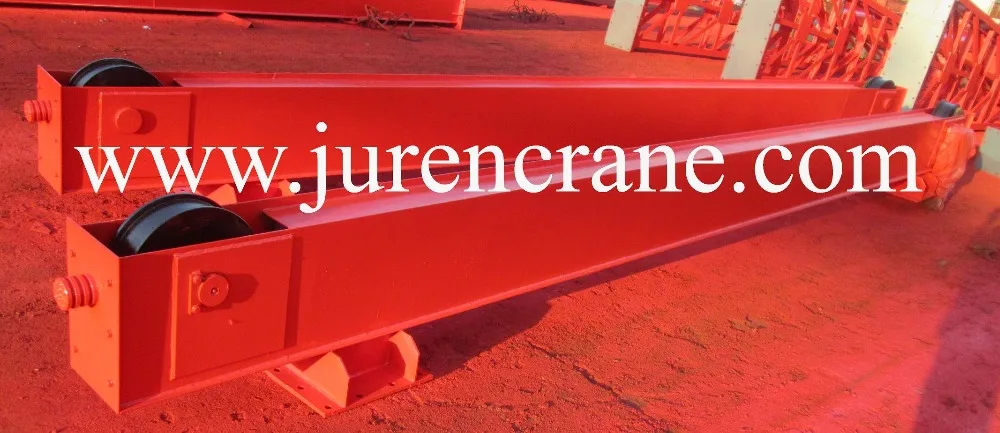

The ground beam of truss frame gantry crane

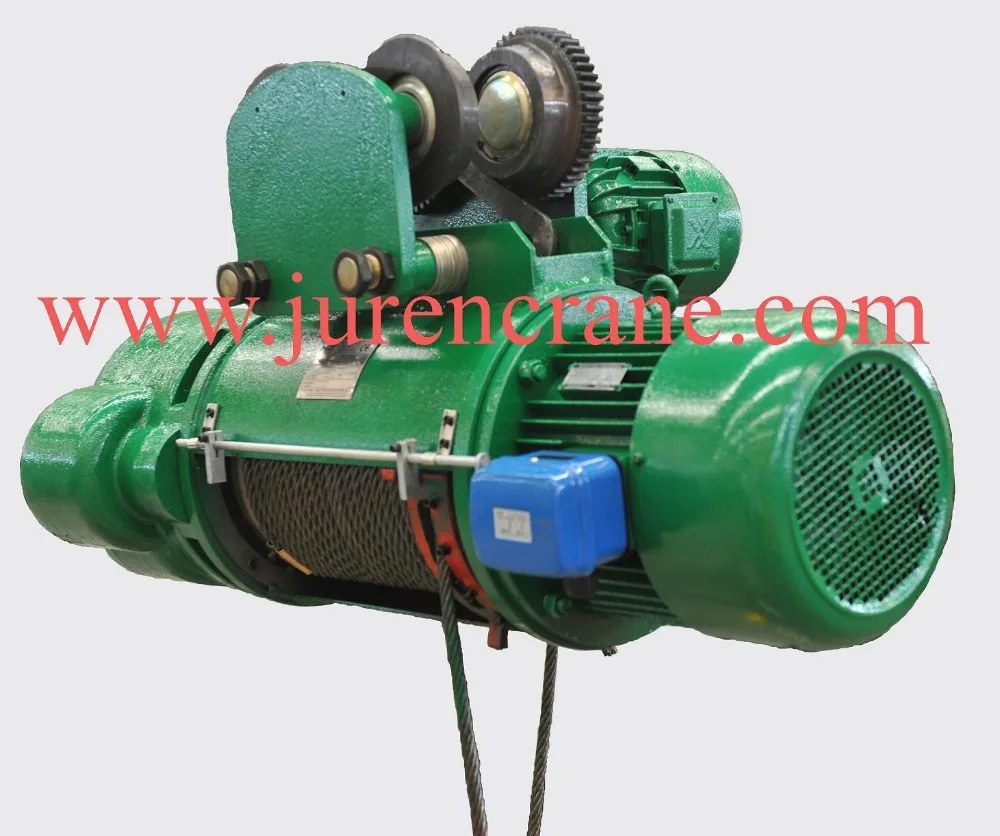

The photos of lifting mechanism(wire rope electric hoist):

Our Services

1,Providing free quick-wear part.

2,Low charge for continue maintenance when warranty is expired.

3,Exclusive engineer support at any time.

4,One year warranty for whole machines.

5,We can provide training to end-users.



Company Information

1. Henan Juren Crane Group Co., Ltd predecessor is Henan Juren Crane Co., Ltd, and was established in 1987.

2. Our company has several subsidiary companies, such as Henan Juren Crane Services Co., Ltd., Henan Juren Advertisement Co., Ltd. and Hexin Machinery & Electronic Co., Ltd.

3. The registered fund of group company is RMB120,000,000, and the fixed assets are RMB200,000,000. We have south district factory, north district factory and new district factory.

4. The company occupies 460,000 square meters, and the total employees are more than 1200 persons.

5. Our company has enough experience and technology to manufacture high quality hoists and cranes.

6. Our purpose is "Customer First, Attentively Service". Welcome to visit our factory and choose our products.

Factory views

ISO Certification



FAQ



Welcome to send us email or leave me message to tell me details of gantry crane demand so that I can send you offer in shortest time:

  1. Lifting Capacity?
  2. Span?
  3. Lifting height?
  4. Industry voltage in your country?

Welcome to contact us and visit our factory.
