high efficiency electric hoist single grider gantry crane 5t 10t 15t 20t 32t

FOB Reference Price:Get Latest Price
US $3,000-50,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Feature:
Gantry Crane
Condition:
New
Application:
Factory, open yard
Rated Loading Capacity:
3.2-32ton
Rated Lifting Moment:
30KN~320KN
Max. Lifting Load:
3.2-32ton
Max. Lifting Height:
6-9m
Span:
12m~24m
Place of Origin:
Henan, China (Mainland)
Brand Name:
Juqi
Model Number:
MH
Certification:
ISO9001
Warranty:
14 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Good name electrical parts:
Schneider brand contactors
Up/down limit switch:
Includes
Overload limiter:
Includes
Emergency stop button:
Includes
Good name motors:
Nanjing motors
Crane frame:
One crane beam only
Lifting mechanism:
Wire rope electric hoist
Power source:
380V, 50Hz, 3phase or others
Control model:
Pendant pushbuttons or remote control
Paint color:
Red or yellow
SupplyAbility
SupplyAbility:
5000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Electrical parts & other small accessory are packaged by plywood cases, the crane beam & end carriages are packaged by plastic materials.
Port
Tinjin, Qingdao, Shanghai
Lead Time :
Shipped in 30 days after payment

high effiency electric hoist single girder gantry crane 5t,10t,15t,20t,32t:




Product Description



1. MH model single girder gantry crane is matched with CD1/MD1 model wire rope electric hoist, it is a kind of track travelling MID-duty class gantry crane.



2. The capacity of this gantry crane is 3.2-32ton, the span from 12m to 24m, the working temperature within -20-- +40 centigrade.


3. This gantry crane is commonly used gantry crane, it be used in outside yard or warehouse for loading/unloading and moving materials.



4. The control model are  pendant pushbutton control, cabin control or remote control for choice.



5. The duty class of this gantry crane is A5.

 1400035732002_hz-fileserver-upload-05_1739073





The frame of crane beam:

100_1617



The frame of legs:

100_2594



The frame of travelling beam(End truck):

Ground beam



The frame of lifting mechansm(wire rope electric hoist):

Packing of electric hoist

The cab and controller:

packing two


    Our Service

1. Freely provide project designing, process designing, choosing suitable equipment for you.

2. Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export

3. 12months warranty

4. One year free parts

5. Professional technicians provide installation, commissioning services

6. Technical advisory for any time

Company Information



  Henan Juren Crane Group Co., predecessor is Henan Juren Crane Co., Ltd, and was established in 1987. Our company has several subsidiary companies, such as Henan Juren Crane Services Co., Ltd., Henan Juren Advertisement Co., Ltd. and Hexin Machinery & Electronic Co., Ltd. The registered fund of group company is RMB120,000,000, and the fixed assets are RMB200,000,000. We have south district factory, north district factory and new district factory. The conpany occupies 460,000 square meters, and the total employees are more than 1200 persons.

Our company has enough experience and technical to manufacture high quality hoists and cranes. Our purpose is "Customer First, Attentively Service". Welcome to visit our factory and choose our products

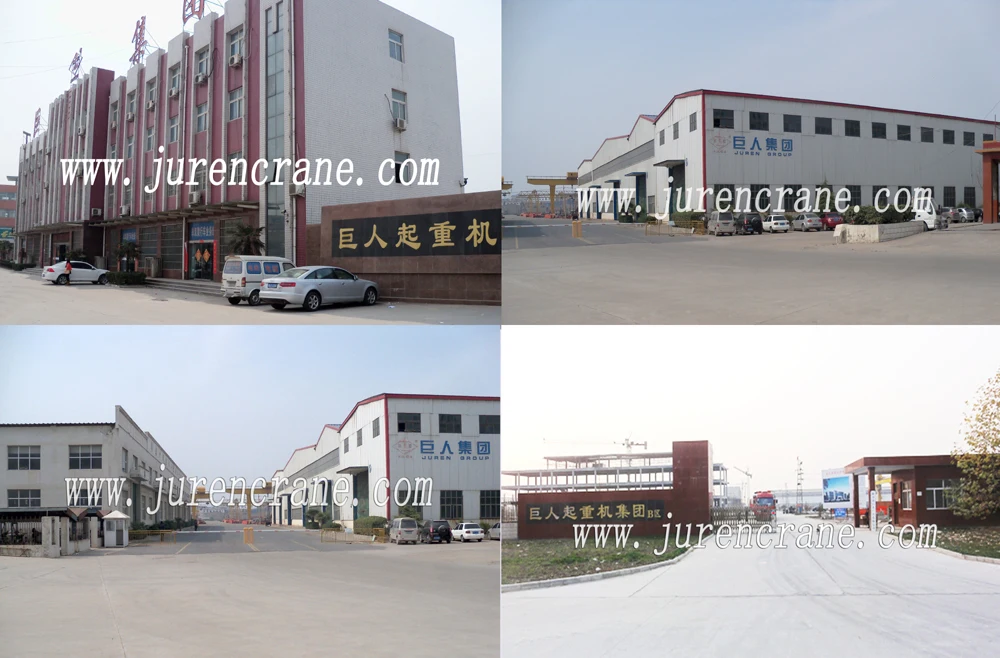

Factory views

100_04453412 .jpg

Picture of factory

ISO Certification


FAQ

Welcome to sent us email or leave me message to tell me details of gantry crane demand so that I can sent you offer in shortest time:

  1. Lifting Capacity?
  2. Span?
  3. Lifting height?
  4. Industry power source in your country?
  5. control mode request?
  6. or other detailed requirement.

 contact me:



Welcome to contact us and visit our factory.

You can search www.juren crane.com or email to us.

We look forward to your reply.
