Quick Details

  • Feature: Bridge Crane
  • Condition: New
  • Application: Warehouse/Workshop
  • Rated Loading Capacity: 50T
  • Rated Lifting Moment: 500KN
  • Max. Lifting Load: 50T
  • Max. Lifting Height: 6m, 9m, 12m or other height
  • Span: 7.5m~35m
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Juqi
  • Model Number: LH
  • Certification: ISO9001
  • Warranty: 14 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Good name electrical parts: Schneider brand contactors
  • Up/down limit switch: Includes
  • Overload protecter: Includes
  • Emergency stop button: Includes
  • Good name motors: Nanjing motors
  • Crane frame: Two crane beams
  • Lifting mechanism: Wire rope electric hoist
  • Power source: 380V, 50Hz, 3phase or others
  • Paint color: Red or yellow or others
  • Control model: Pendant pushbuttons or remote control

Packaging & Delivery

Packaging Details Electrical parts & other small accessory are packaged by plywood cases, the crane beam & end carriages are packaged by plastic materials
Delivery Time Shipped in 40 days after payment

1-50ton double girder overhead crane price

Product Description





LH model electric Hoist Overhead Crane has such features as tight dimensions,low building headroom, light dead weight and light wheel load. They are applicable to the transfer,assembly,check and repair as well as load and unload at mechanic processing workshop ,subsidiary workshop of metallurgical mills,warehouse,good yard and power station .They can also be used instead of common double-girder overhead crane at production workshop in light textiles or food industry.It has two kinds of classification,that is ,light and medium.The working ambient temperature is generally -25~40.It is forbidden to work in environment with combustible, explosive or corrosive media.







Two operating methods,namely,on floor and in the driver’s cabin, have been designed for such kind of crane .The cabin is divided into open-style and closed style . The cabin can be installed on the left or right according to actual conditions . The operator can enter the cabin from one side,rear or top ,which depends on the different user’s requirements.



The general details of electric hoist overhead crane

Span(rail to rail center)

7.5m~35m

Lifting height

6m, 9m, 12m or other height

Capacity

5t

10t

15t, 16t

20t, 25t

30t, 32t

40t, 50t

Lifting speed(m/min)

8, 8/0.8

7/0.7

3.5,

3.5/0.35

4, 4/0.4

3, 3/0.3

2, 2/0.2

Cross travelling speed(m/min)

10, 20

10, 20

10, 20

10, 20

10, 20

10, 20

Long travelling speed(m/min)

20, 30

20, 30

20, 30

20, 30

20, 30

20, 30

Duty Class

A3/A4

Power source

380V, 50HZ, 3 phase (or other standard)

Working temperature

-20~40

Control model

Pendant pushbutton control, cabin control or remote control









Main beam of double girder overhead crane





End carriage of double girder overhead crane





Hoist type electric trolley-lifting unit

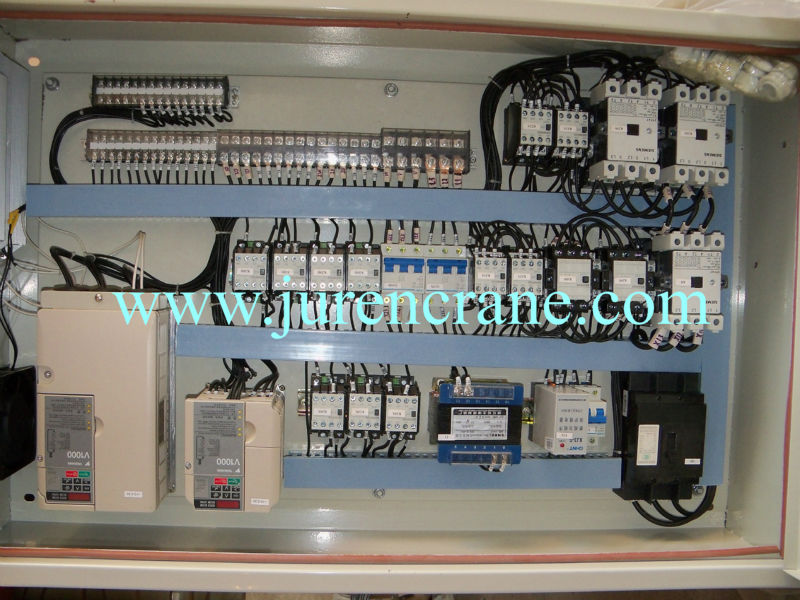

Control box ( it includes Siemens contactor and low voltage protector)





Pendent pushbutton control or remote control(it include emergency stop pushbutton)







Our Services





1,Providing free quick-wear part.
2,Low charge for continue maintenance when warranty is expired.
3,Exclusive engineer support at any time.
4,One year warranty for whole machines.
5,We can provide free training to end-users.





Company Information



Henan Juren Crane Group Co., predecessor is Henan Juren Crane Co., Ltd, and was established in 1987. Our company has several subsidiary companies, such as Henan Juren Crane Services Co., Ltd., Henan Juren Advertisement Co., Ltd. and Hexin Machinery & Electronic Co., Ltd. The registered fund of group company is RMB120,000,000, and the fixed assets are RMB200,000,000. We have south district factory, north district factory and new district factory. The conpany occupies 460,000 square meters, and the total employees are more than 1200 persons.
Our company has enough experience and technical to manufacture high quality hoists and cranes. Our purpose is "Customer First, Attentively Service". Welcome to visit our factory and choose our products.



Factory views





Certifications





Production certificate & ISO certificate



FAQ





Welcome to sent us email or leave me message to tell me detailed demands of overhead crane, so that I can sent you offer in shortest time:

1. Lifting Capacity?(ton)
2. Span of crane?(Meter)
3. Lifting height of hook?(Meter)
4. Industry voltage in your country?(3 phase power source)
