Top design single girder gantry 25 ton mobile crane

FOB Reference Price:Get Latest Price
US $3,000-50,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
5000 Set/Sets per Year
Port:
Tinjin, Qingdao, Shanghai
Report Suspicious Activity
Overview
Quick Details
Feature:
Gantry Crane
Condition:
New
Application:
Factory, open yard
Rated Loading Capacity:
25t
Rated Lifting Moment:
250KN
Max. Lifting Load:
25t
Max. Lifting Height:
12m~35m or others
Span:
12m~35m
Place of Origin:
Henan, China (Mainland)
Brand Name:
Juqi
Model Number:
MH
Certification:
ISO9001
Warranty:
14 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Good name electrical parts:
Schneider brand contactors
Up/down limit switch:
Includes
Overload limiter:
Includes
Emergency stop button:
Includes
Good name motors:
Nanjing motors
Crane frame:
One crane beam only
Lifting mechanism:
Wire rope electric hoist
Power source:
380V, 50Hz, 3phase or others
Control model:
Pendant pushbuttons or remote control
Paint color:
Red or yellow
Packaging & Delivery
Packaging Details
Electrical parts & other small accessory are packaged by plywood cases, the crane beam & end carriages are packaged by plastic materials.
Delivery Time
45days



Product Description

MH Model Electric Single Bean Gantry is used together with CD1,MD1 Model electric  hoists .It is a track travelling small and medium-sized crane.

Its proper lifting weight is 3to 16 tons ,proper span is 6 to 31.5 meters,its proper working temperature is-20℃ to 40℃.

This product is a regular crane, widely used at open ground and warehouses to load,unload or grab materials. It  has2controlling and room controlling.

The general details of single girder gantry crane

Span(rail to rail center)

12m~35m or others

Cantilevers

According to your demand(less than 1/3 of span)

Lifting height

6m, 9m, 12m or other height

Capacity

3t, 5t

10t

15t, 16t

20t, 25t

30t, 32t

Lifting speed(m/min)

8, 8/0.8

7/0.7

3.5,

3.5/0.35

4, 4/0.4

3, 3/0.3

Cross travelling speed(m/min)

10 or 20

10 or 20

10 or 20

10 or 20

10 or 20

Long travelling speed(m/min)

20, 30

20, 30

20, 30

20, 30

20, 30

Duty Class

A3/A4

Power source

380V, 50HZ, 3 phase (or other standard)

Working temperature

-20~40℃

Control model

Pendant pushbutton control, cabin control or remote control





Picture show

  The frame of crane beam:

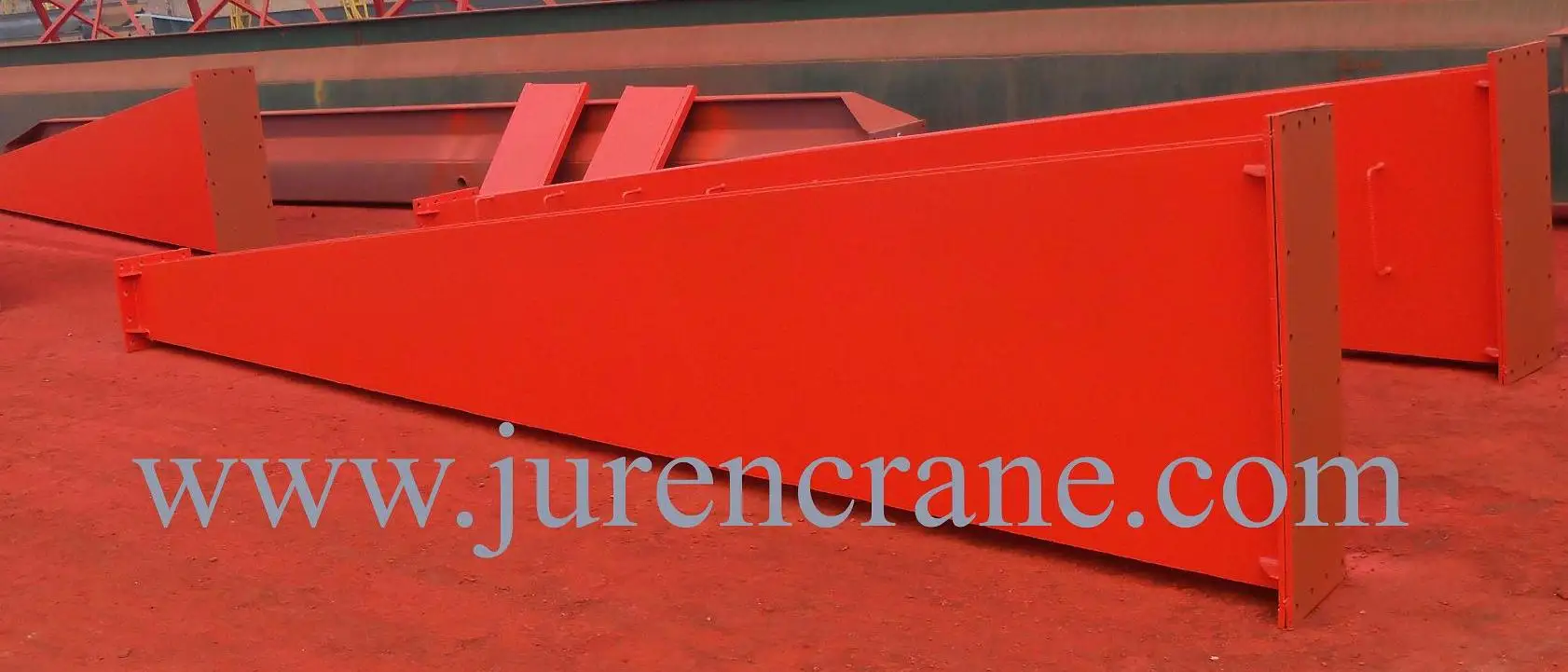

  The frame of legs:

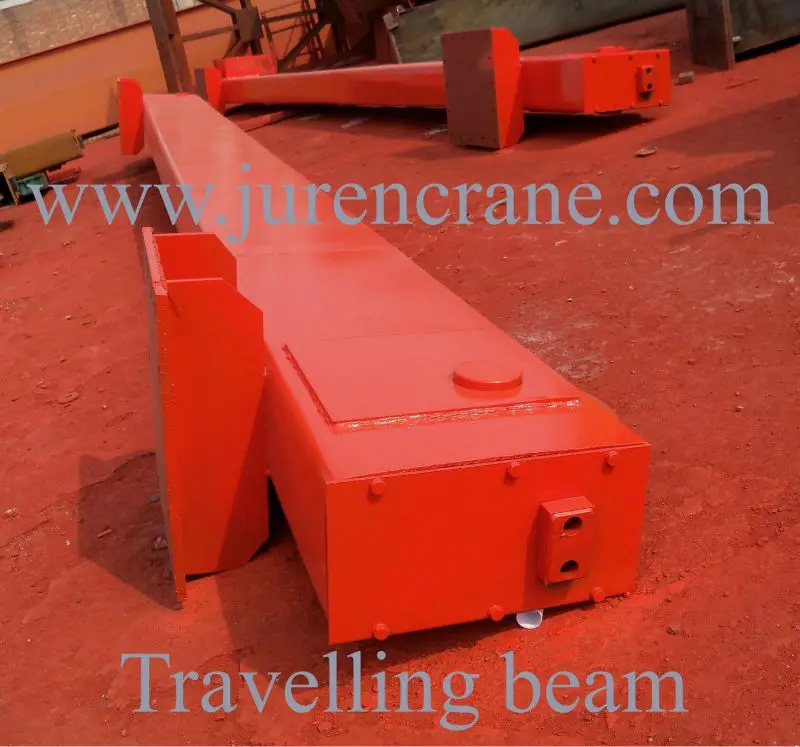

  The frame of travelling beam(End truck):

The frame of lifting mechansm(wire rope electric hoist):







Packaging & Shipping



Packaging Details:Electrical parts & other small accessory are packaged by plywood cases, the crane beam & end carriages are packaged by plastic materials.
Delivery Detail:45 days
Company Information



Henan Juren Crane Group Co., predecessor is Henan Juren Crane Co., Ltd, and was established in 1987. Our company has several subsidiary companies, such as Henan Juren Crane Services Co., Ltd., Henan Juren Advertisement Co., Ltd. and Hexin Machinery & Electronic Co., Ltd.  The registered fund of group company is RMB120,000,000, and  the fixed assets are RMB200,000,000.  We have south district factory, north district factory and new district factory.  The conpany occupies 460,000 square meters, and the total employees are more than 1200 persons.

    Our company has enough experience and technical to manufacture high quality hoists and cranes. Our purpose is "Customer First, Attentively Service". Welcome to visit our factory and choose our products.



Photos view





Our Services



1. Freely provide project designing, process designing, choosing suitable equipment for you.

2. Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export

3. 1months warranty

4. One year free quick-wear parts

5. Professional technicians provide installation, commissioning services

6. Technical advisory for any time



FAQ



Welcome to sent us email or leave me message to tell me details of gantry crane demand so that I can sent you offer in shortest time:



  1. Lifting Capacity?
  2. Span?
  3. Lifting height?
  4. Industry power source in your country?
  5. Or other detailed requirements.
