QD double beam overhead crane

FOB Reference Price:Get Latest Price
US $1,500-20,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
QD
Report Suspicious Activity
Overview
Quick Details
Feature:
Bridge Crane
Condition:
New
Application:
Warehouse/Workshop
Rated Loading Capacity:
550 ton
Rated Lifting Moment:
5550 KN
Max. Lifting Load:
550 ton
Max. Lifting Height:
6m~30m
Span:
7.5m~35m
Place of Origin:
Henan, China (Mainland)
Brand Name:
Juqi
Certification:
ISO9001
Warranty:
14 months
Crane type:
Double beam overhead crane
Up/down limit switch:
Includes
Overload protecter:
Includes
Environmental Management System:
GB/T 19001-2000 idt ISO 9001:2000 pass
Occupational health and safety System:
GB/T 28001-2001,OHSAS 18001:1999 pass
Quality management system:
GB/T 19001-2000 idt ISO 9001:2000 pass
Power source:
380V, 50Hz, 3phase or others
Paint color:
Red or yellow or others
Electrical parts:
Siemens contactors
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Main beam and end carriage are packed by plastic woven cloth or container, other electric parts are packed by strong plywood crate.
Port
Tianjin port

QD double beam overhead crane

Product Description

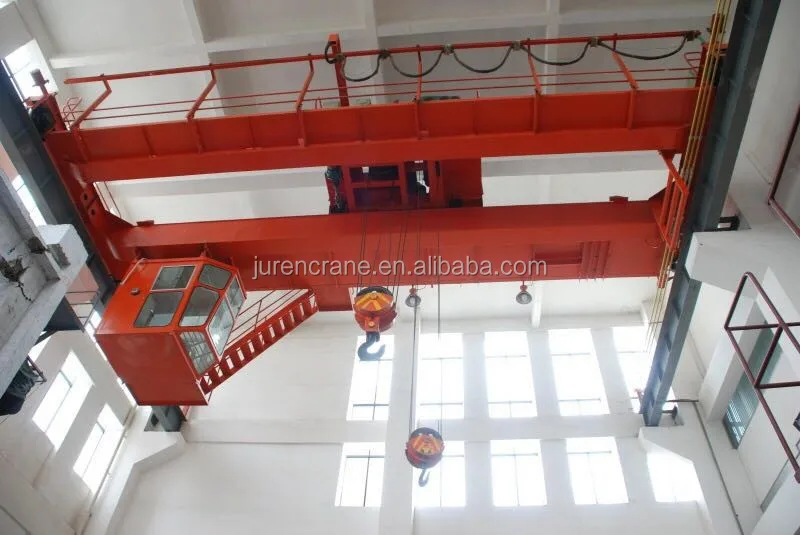

1. QD model double girder overhead crane mainly consists of bridge , trolley traveling mechanism, crab an electric appliances.

2.Capacity is 1 ton to 550 ton. The span is 5m to 36m. Lifting height is up to 30m. Working grade is A5-A7.

3. The crane operation is completed in driver`s cab.

4. The cabin can be installed on  the left or right according to actual conditions.

5. The operator can enter the cabin from on side, rear or top, which depends on the uders` requirement.

Technical specification

Model number

QD - Double beam overhead crane

Capacity(main hook)

5~550ton

Capacity(Aux hook)

as your requirement

Span

7.5m-35m

Lifting height

6m, 9m, 12m, 18m, 24m, 30m

Lifting unit

Wire rope electric trolley

Industrial voltage

380V,50Hz,3Phase or as your demands

Control methods

Pendant push button, remote controller or cabin control

Working temperature

-25°C~+42°C

Working class

A5, A6, A7

Color of crane

Red, yellow or as your demands

Raw material of crane structure

Q235 steel plate

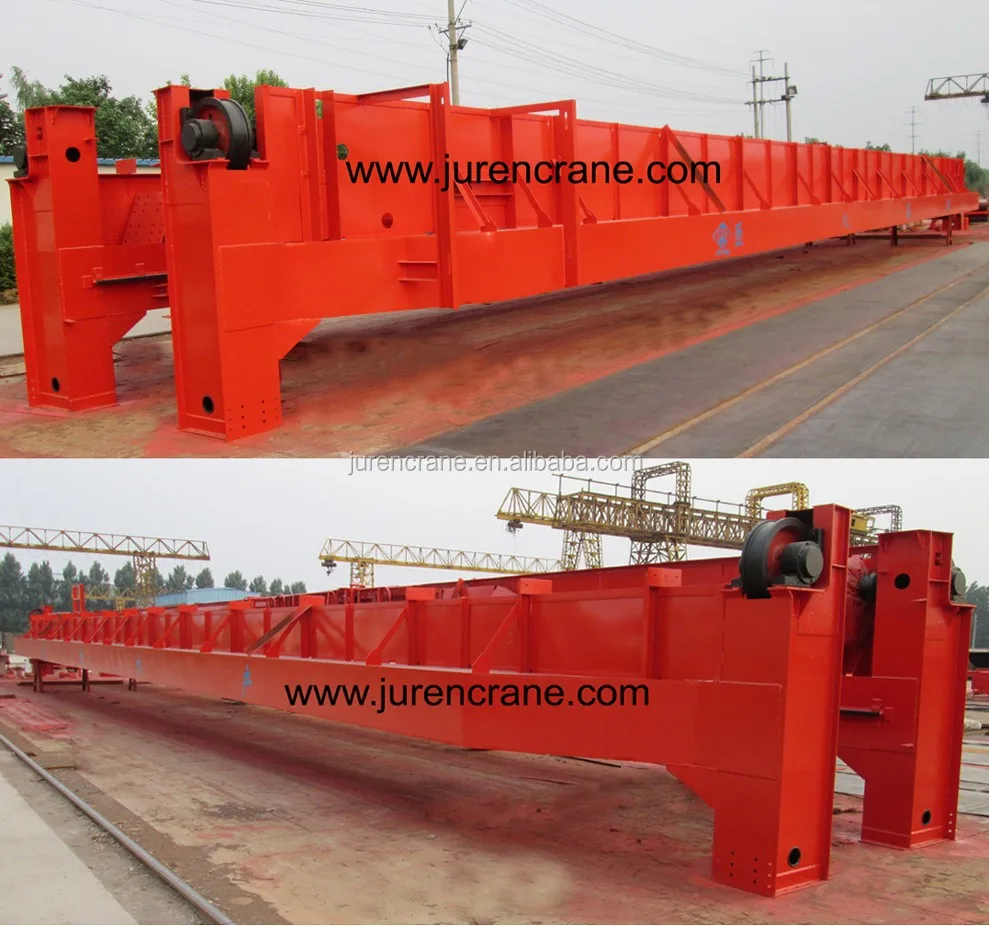

(1)Pictures of main beams and end carriage

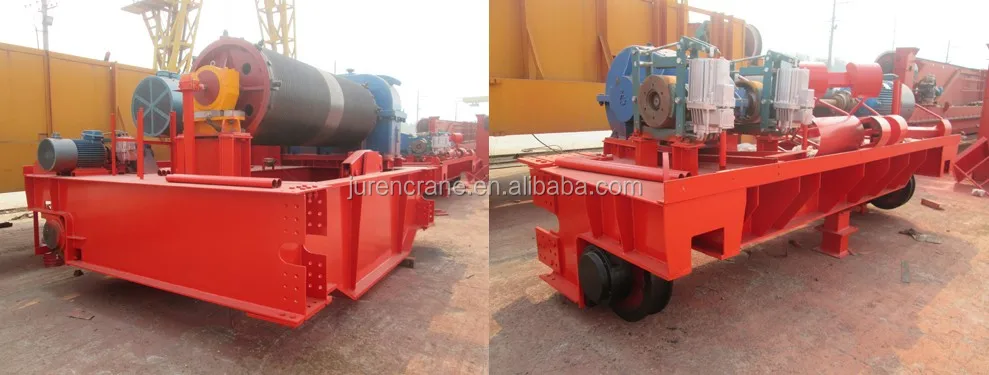

(2) Pictures of electric trolley

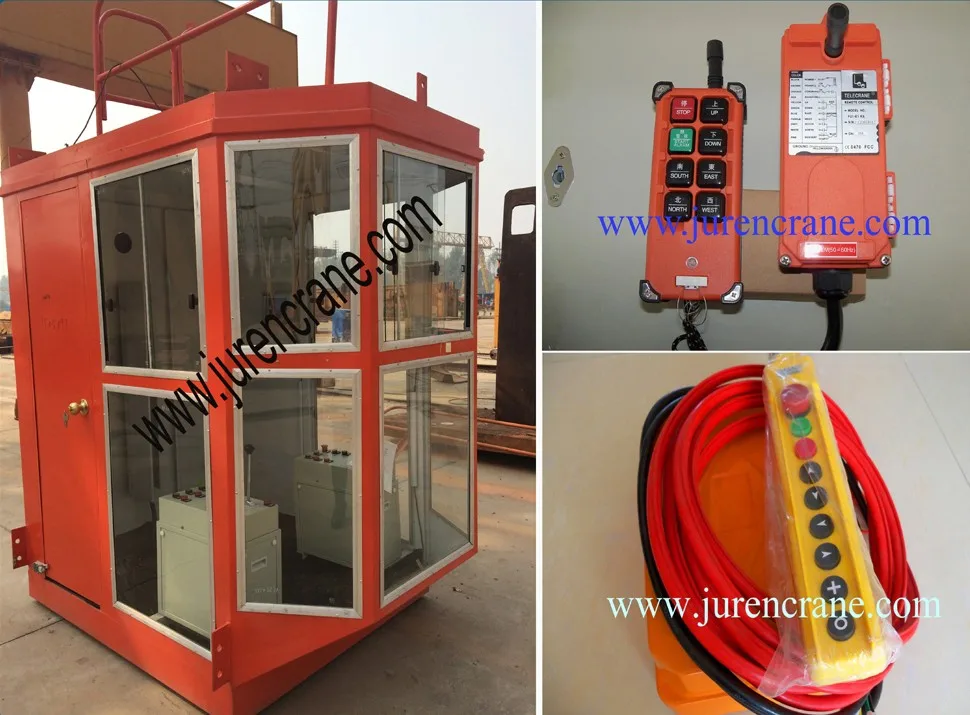

(3) Control ways



Packaging & Shipping



Our Services

 - Freely provide project designing, process designing, choosing suitable equipment for you.

- Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process and complete process of export.

- 12months warranty.

- One year freeparts.

- Professional technicians provide installation, commissioning services.

- Technical advisory for any time.

Company Information

 Henan Juren Crane Group Co.,Ltd predecessor is Henan Juren Crane Co., Ltd, and was established in 1987. Our company has several subsidiary companies, such as Henan Juren Crane Services Co., Ltd., Henan Juren Advertisement Co., Ltd. and Hexin Machinery & Electronic Co., Ltd. The registered fund of group company is RMB120,000,000, and the fixed assets are RMB200,000,000. We have south district factory, north district factory and new district factory. The company occupies 460,000 square meters, and the total employees are more than 1200 persons.

Our company has enough experience and technology to manufacture high quality hoists and cranes. Our purpose is "Customer First, Attentively Service". Welcome to visit our factory and choose our products.

FAQ

- lifting capacity

- lifting height

- span

- power supply( 380v 50hz 3phase or not)

- other special requirement.
