MG model double beam gantry crane

FOB Reference Price:Get Latest Price
US $8,000-200,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Feature:
Gantry Crane
Condition:
New
Application:
Open plant, warehouse
Rated Loading Capacity:
5ton~300ton
Rated Lifting Moment:
50KN~3000KN
Max. Lifting Load:
5ton~300ton
Max. Lifting Height:
6m, 9m, 12m
Span:
12m~35m
Place of Origin:
Henan, China (Mainland)
Brand Name:
Juqi
Model Number:
MG
Certification:
ISO9001
Warranty:
14 months
After-sales Service Provided:
Engineers available to service machinery overseas
Good name electrical parts:
Schneider brand contactors
Up/down limit switch:
Includes
Overload limiter:
Includes
Emergency stop button:
Includes
Good name motors:
From Jamusi or Jiangsu
Crane frame:
Double main beams
Lifting mechanism:
Heady duty trolley
Power source:
380V, 50Hz, 3phase or others
Control model:
Cabin control or remote control
Paint color:
Red or yellow
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Electrical parts & other small accessory are packaged by plywood cases, the crane beam & end carriages are packaged by plastic materials.
Port
Tinjin, Qingdao, Shanghai
Lead Time :
35~60 days

MG model double beam gantry crane




Product Description



1. MG model double beam gantry crane  is applied in outside plant or railway sideways to conduct common lifting and loading unloading works.

2. This double beam gantry crane is composed of two main beams, four support legs, crane travelling systems, trolley and electric equipment.



3. The beams and legs adopts box-type welding frame, the crane travelling mechanism adopts separate drive.



4. All motions are operated in the driver's cabin or wireless remote control, the power supply of crane adopts cables or sliding wires, select one when ordering.

5. The MG model double girder gantry crane is heavy duty type crane, the duty class is A5, the temperature of working environment within -20 ~ +40 degree.



6. The capacity from 5ton to 300ton, the span from 12m to 35m, the standard lifting height are 6m, 9m, 12m.



Technical specification

Model number

MG - Double girder gantry crane

Capacity

5~250ton

Capacity(Aux hook)

as your requirement

Span

12m-35m

Cantilever

as your requirement

Lifting height

6m, 9m, 12m, 18m, 24m, 30m or as your requirement

Lifting unit

Wire rope electric trolley

Industrial voltage

380V,50Hz,3Phase or as your demands

Control methods

Pendant push button, remote controller or cabin control

Working temperature

-25°C ~ +42°C

Working class

A3, A4,A5

Color of crane

Red, yellow or as your demands

Raw material of crane structure

Q235 steel plate

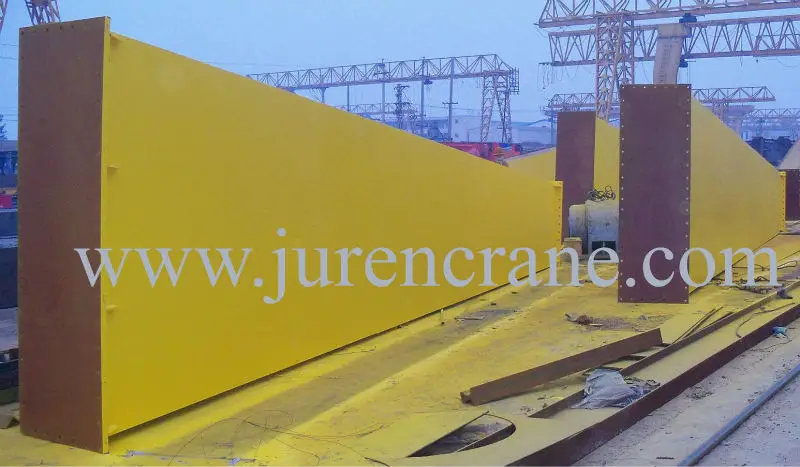

The frame of main beams:

Main beam.jpg



The frame of legs:

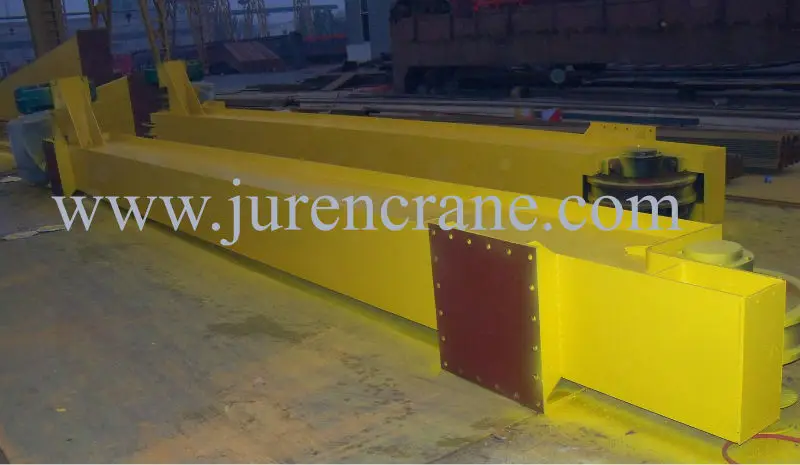

The frame of travelling beam(end truck):

End truck.jpg



The frame of lifting mechanism(heavy duty trolley):





Our Services



1. Freely provide project designing, process designing, choosing suitable equipment for you.

2. Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export

3. 12months warranty

4. One year free parts

5. Professional technicians provide installation, commissioning services

6. Technical advisory for any time


Company Information





     Henan Juren Crane Group Co., predecessor is Henan Juren Crane Co., Ltd, and was established in 1987. Our company has several subsidiary companies, such as Henan Juren Crane Services Co., Ltd., Henan Juren Advertisement Co., Ltd. and Hexin Machinery & Electronic Co., Ltd.  The registered fund of group company is RMB120,000,000, and  the fixed assets are RMB200,000,000.  We have south district factory, north district factory and new district factory.  The conpany occupies 460,000 square meters, and the total employees are more than 1200 persons.



    Our company has enough experience and technical to manufacture high quality hoists and cranes. Our purpose is "Customer First, Attentively Service". Welcome to visit our factory and choose our products.



Factory views



Picture of factory



ISO Certification



certification















FAQ



Please confirm the below information, we will offer you best crane desigh and best service.



1. Capacity of gantry crane



2. Span ( the distance of rail center to rail center)



3. Lifting height (the distance of ground to hook center)



4. Industrail voltage



5. Do you need cantilever? if you need,Pls tell me the length.



6. Do you need we supply rails?







Welcome to contact us and visit our factory.
