Quick Details

  • Feature: Gantry Crane
  • Condition: New
  • Application: Factory, open yard
  • Rated Loading Capacity: 3ton~32ton
  • Rated Lifting Moment: 30KN~320KN
  • Max. Lifting Load: 3ton~32ton
  • Max. Lifting Height: 6m, 9m, 12m, 18m
  • Span: 6m~35m
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Juqi
  • Model Number: MH
  • Certification: ISO9001
  • Warranty: 14 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Good name electrical parts: Schneider brand contactors
  • Up/down limit switch: Includes
  • Overload limiter: Includes
  • Emergency stop button: Includes
  • Good name motors: Nanjing motors
  • Crane frame: One crane beam only
  • Lifting mechanism: Wire rope electric hoist
  • Power source: 380V, 50Hz, 3phase or others
  • Control model: Pendant pushbuttons or remote control
  • Paint color: Red or yellow

Packaging & Delivery

Packaging Details Electrical parts & other small accessory are packaged by plywood cases, the crane beam & end carriages are packaged by plastic materials.
Delivery Time Shipped in 35 days after payment

MH model single girder gantry crane


Product Description


1. MH model single girder gantry crane is matched with CD1/MD1 model wire rope electric hoist, it is a kind of track travelling MID-duty class gantry crane.


2. The capacity of this gantry crane from 3ton to 32ton, the span from 6m to 35m, the working temperature within -20-- +40 centigrade.

3. This gantry crane is commonly used gantry crane, it be used in outside yard or warehouse for loading/unloading and moving materials.


4. The control model are  pendant pushbutton control, cabin control or remote control for choice.


5. The duty class of this gantry crane is A3(Equal to FEM 1Bm).

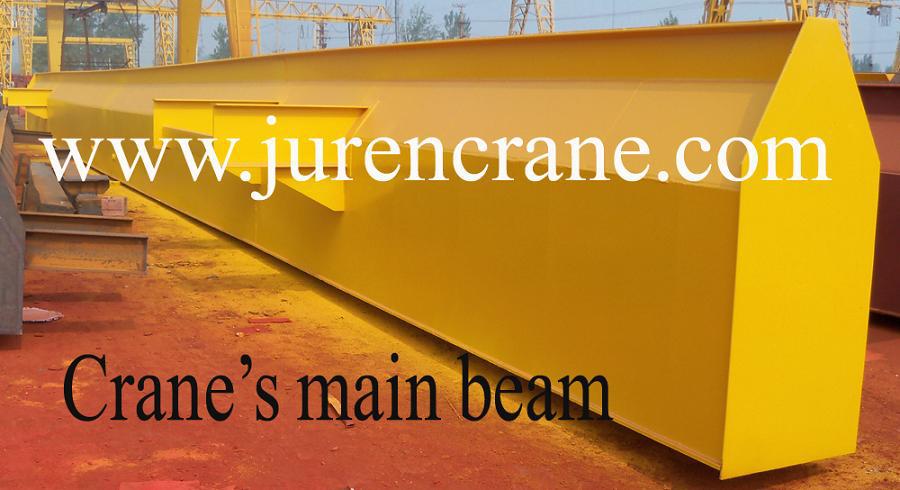

The frame of crane beam:


The frame of legs:

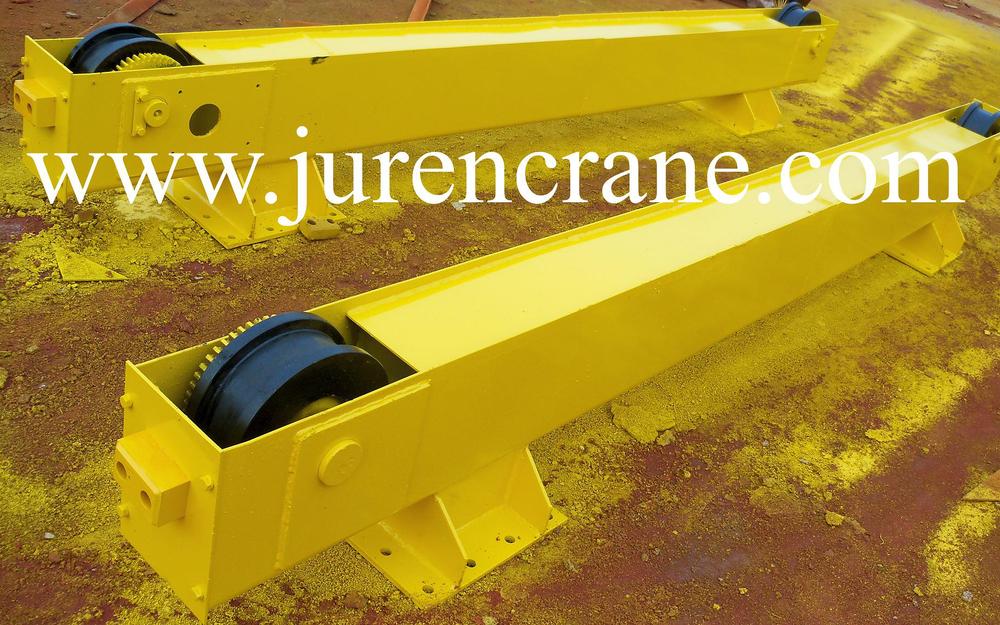

The frame of travelling beam(End truck):


The frame of lifting mechansm(wire rope electric hoist):



Company Information


Factory views



ISO Certification






Welcome to sent us email or leave me message to tell me details of gantry crane demand so that I can sent you offer in shortest time:


  1. Lifting Capacity?
  2. Span?
  3. Lifting height?
  4. Industry power source in your country?
  5. Or other detailed requirements.



Welcome to contact us and visit our factory.
