Quick Details

  • Feature: Bridge Crane
  • Condition: New
  • Application: Warehouse/Workshop
  • Rated Loading Capacity: 1ton~20ton
  • Rated Lifting Moment: 10KN~200KN
  • Max. Lifting Load: 1ton~20ton
  • Max. Lifting Height: 6m~30m
  • Span: 4.5m~35m
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Juqi
  • Model Number: LD
  • Certification: ISO9001
  • Warranty: 14 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Good name electrical parts: Schneider brand contactors
  • Up/down limit switch: Includes
  • Overload protecter: Includes
  • Emergency stop button: Includes
  • Good name motors: Nanjing motors
  • Crane frame: One crane beam only
  • Lifting mechanism: Wire rope electric hoist
  • Power source: 380V, 50Hz, 3phase or others
  • Paint color: Red or yellow
  • Control model: Pendant pushbuttons or remote control

Packaging & Delivery

Packaging Details Electrical parts & other small accessory are packaged by plywood cases, the crane beam & end carriages are packaged by plastic materials.
Delivery Time Shipped in 30 days after payment

LD model single girder overhead crane:







Product Description







1. LD model single girder overhead crane  is characterized by more reasonable structure and higher strength steel as a whole, the main beam and end carriage are made by U-section steel frame.



2. This overhead crane is used together with CD1/MD1 model or HC/HM model wire rope electric hoist as a complete set.



3. This overhead crane is medium duty class overhead crane, the capacity from 1ton to 20 tons. The span from 7.5m to31.5m, the working grade is A3. Working temperature within -25 to +40 centigrade.


4. This overhead crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive to corrosives environment.



The picture of main beam:

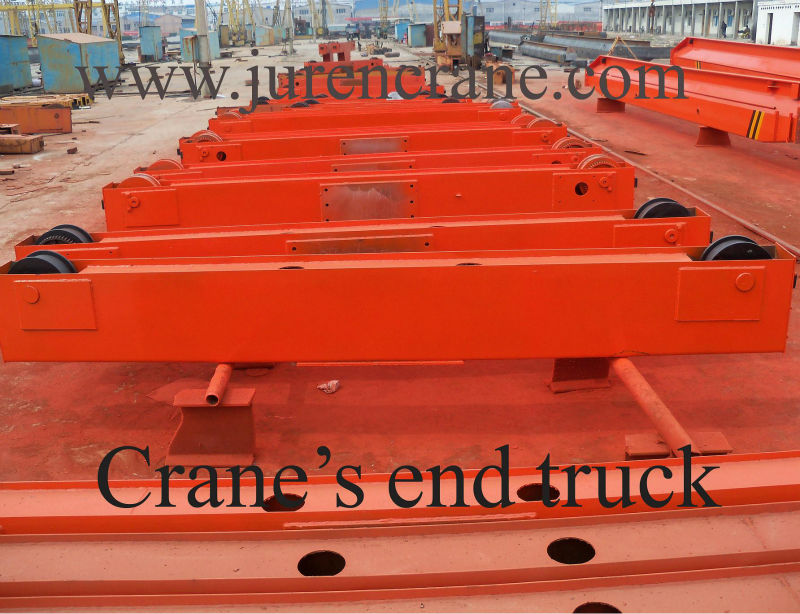

The picture of end truck:



The picture of lifting unit(electric hoist):




Packaging & Shipping



The loading and delvery:















Our Services







1,Providing free quick-wear part.



2,Low charge for continue maintenance when warranty is expired.



3,Exclusive engineer support at any time.



4,One year warranty for whole machines.



5,We can provide training for end-users.







Company Information



Henan Juren Crane Group Co., predecessor is Henan Juren Crane Co., Ltd, and was established in 1987. Our company has several subsidiary companies, such as Henan Juren Crane Services Co., Ltd., Henan Juren Advertisement Co., Ltd. and Hexin Machinery & Electronic Co., Ltd. The registered fund of group company is RMB120,000,000, and the fixed assets are RMB200,000,000. We have south district factory, north district factory and new district factory. The conpany occupies 460,000 square meters, and the total employees are more than 1200 persons.



Our company has enough experience and technical to manufacture high quality hoists and cranes. Our purpose is "Customer First, Attentively Service". Welcome to visit our factory and choose our products.

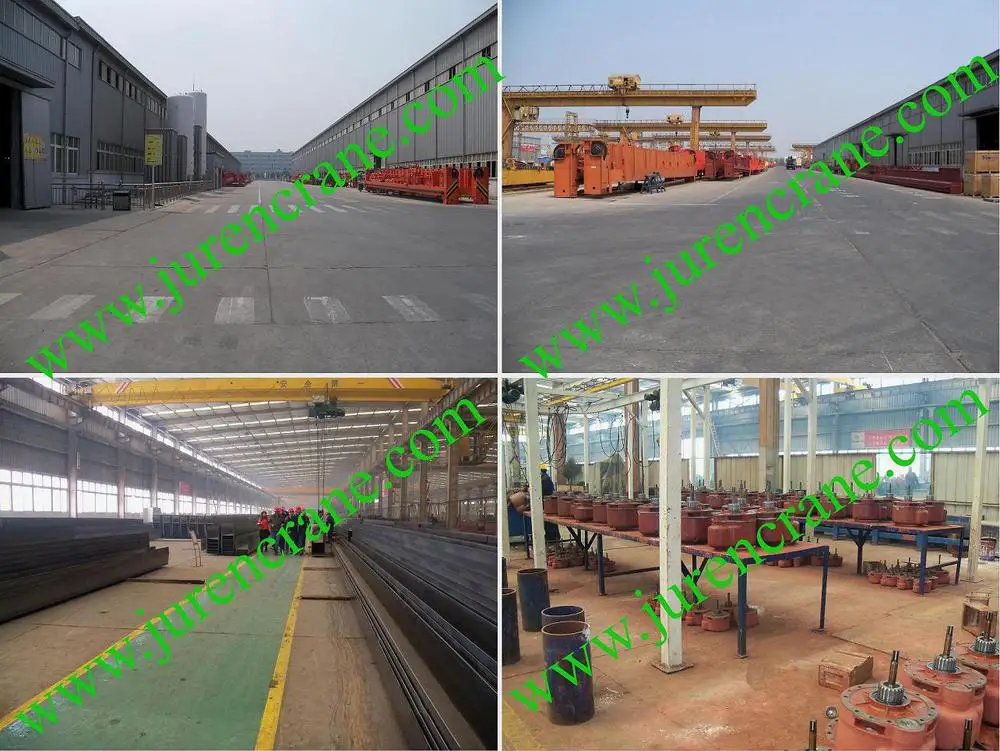

Factory views





ISO Certification









FAQ



Welcome to sent us email or leave me message to tell me details of gantry crane demand so that I can sent you offer in shortest time:



  1. Lifting Capacity?
  2. Span?
  3. Lifting height?
  4. Industry voltage in your country?
  5. Or other detailed requirements.



Welcome to contact us and visit our factory.
